- Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
- Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
- Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

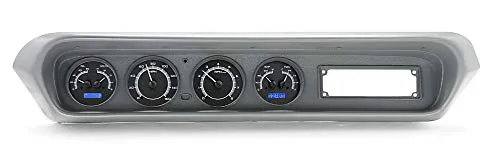

- VHX-64P-GTO-K-B (black alloy style/blue backlighting) is compatible with 1964-67 Pontiac GTO, Lemans and Tempest. Regarded by many as the original muscle car, the ’64 GTO started something big. Makes use of the stock instrument housing. Full analog instrumentation in addition to LCD message centers offer pertinent information in a classic design. These VHX Systems fit directly into the stock gauge carrier and include new clear lenses, the stock instrument lenses will no longer be used.
This new VHX system is compatible with 1964-67 Pontiac GTO, Lemans and Tempest, fits directly into the stock Pontiac gauge carrier and include new clear lenses, the stock instrument lenses will no longer be used.
System uses factory bezel (bezel is not included).
Regarded by many as the original muscle car, the '64 GTO started something big. Finish off your 1964-67 GTO, Tempest, or Lemans with a world-class instrument system that makes use of the stock instrument housing (not included). Full analog instrumentation in addition to LCD message centers offer pertinent information in a classic design.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Analog Gauges:
Speedometer - 0-160 MPH
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Message Centers:
Standard Displays:
-Odometer (One time user settable, Million Mile)
-Dual (A/B) Trip Meter (0- 9,999.9)
-Clock (12 hour)
Performance Meters:
-0-60 MPH Timer (0- 100 kmh)
-1/4 mile time
-1/4 mile end speed (trap speed)
-High speed recall
-High RPM recall
Built-In Indicators:
-Turn Signals (Left/ Right)
-High Beam
-Check Engine
-Parking Brake
-Cruise Control (On/ On & Engaged when vehicle is equipped)...
- Is Discontinued By Manufacturer : No
- Product Dimensions : 24 x 14 x 6 inches; 7 Pounds
- Department : Unisex Adult
- Date First Available : September 19, 2016
- Manufacturer : Dakota Digital
