Brand:FBT
Manufacturing Process:Rolled Thread
Precision:C7 Grade
Material:GCr15 steel
Model:SFU2010
This item include:

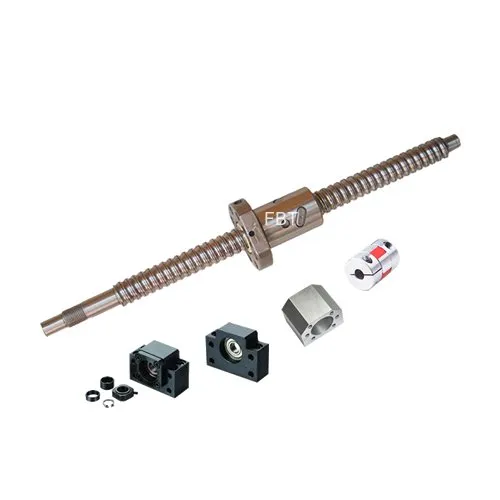

1Pcs SFU2010 - L700mm 1Pcs SFU2010 METAL DEFLECTOR single flange Ball Nut
1Pcs BK15/BF15 End Support with locknuts and circlips
1Pcs DSG20H NUT HOUSINGS
1Pcs 8*12mm flexible coupler
Please Note:
1) L700mm is the overall length(Including end machining part)
With BK15/BF15 standard end machining
2) Flexible coupler bore size can be changed according your motor shaft diameter, please confirm with us before order if you need change the bore size.
About End machining
This item ball screw has end machining
If you are no need to machining the end or need to according to your drawings end machining, please tell us before order, otherwise, we will make the standard machining work.
We can according to your drawing end machining
Custom lengths
We can cut any length that you want, and pls let us know for what length are suitable for you then we will check the total costs for you as soon as possible.

• Date First Available ‏ : ‎ May 12, 2015
• Manufacturer ‏ : ‎ FBT
