- Made by Hot Racing; Hot Racing is a United States based company; parts are sourced from Chinese producers
- All Hot Racing upgrade parts are direct replacements for stock components; additional parts are not required
- Hot Racing part number NSG33M06; UPC 083745700961
- This item works with: HPI Electric E10; Tamiya FF03, M03 Mini, M04L Mini, M05 Mini, M06 Mini, RM-01 1/12 scale, TA01, TA01 FF, TA02, TA02W, TA03, TA04, TA05, TA06 Sedan, TB, TL01, Trf417, TT01

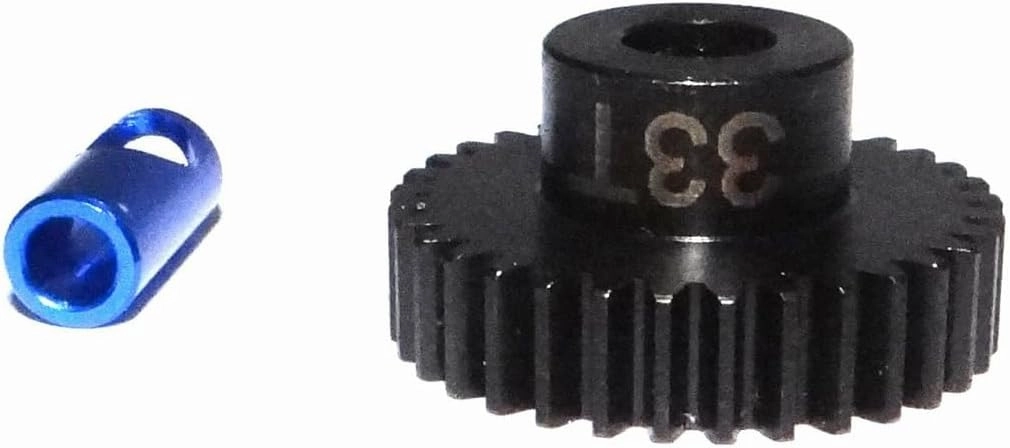

Hot Racing 33T, 0.6 module (~42P) steel pinion gear for 5mm or 1/8in motor shafts
FEATURES:
- CNC machined steel with black Nitride finish
- Heavy duty 4mm set screw
- Long design for maximum motor shaft contact
- Laser marked tooth count
- Includes a 5mm-1/8in shaft adapter to accommodate both 5mm and 1/8in motor shafts
YOU WILL RECEIVE:
- One (1) 33T, 0.6mod pinion gear
- One (1) M4x4mm setscrew
- One (1) 5mm to 1/8in conversion sleeve
REQUIREMENTS:
- 2mm hex wrench to install the set screw
- Recommended to use a removable thread-locking adhesive (blue threadlocking compound) on setscrew
SPECIFICATIONS:
- Teeth: 33
- Pitch: 0.6 module (~42P)
- length: 10.5mm
- Outside diameter: 20.9mm
- Tooth face width: 5mm
description revised by: SN March 9, 2016
