ball valve
Good Service -- If any problem please feel free to contact
The water shut off tool valve is designed to withstand high pressure and temperature extremes. Lasts longer than plastic valves which can crack or leak. Ideal for or leisure facilities.
【Easy Installation】-- No further modification direct replacement

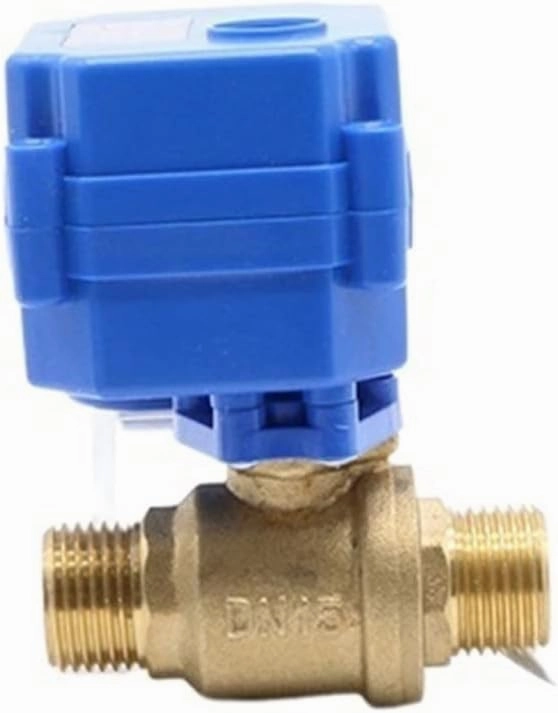

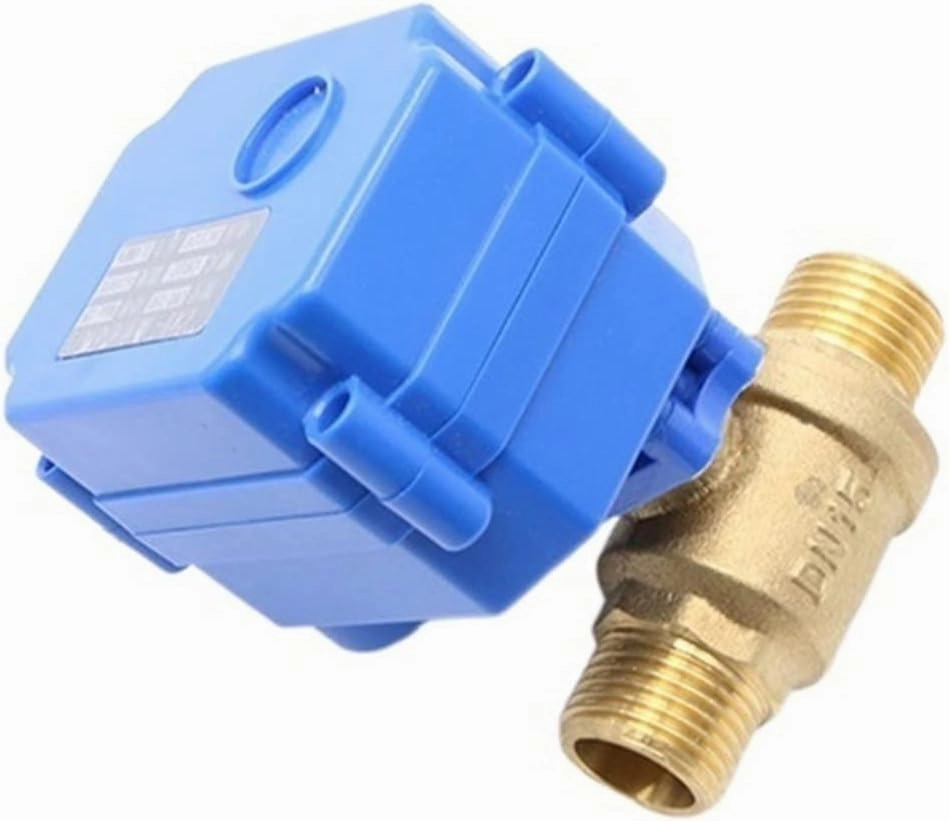

DN15 G1/2 MxM brass electric ball valve MINI Automatic motor valve AC/DC9-24V / AC220V CR03 / 04
Model:CWX-15N
Volatage:AC/DC9-24V / AC220V optional
Features:
1. beautiful appearance compact all-metal gear transmission mechanism reliable performance output torque long life;
2. the electrical spacing positioning accuracy consistency is very high;
3. actuator and valve assembly can be multi-angle assembly convenient in demand for space allocation;
4. Ball floating seal structure no drip suitable for heavy dirt and long-term non-action situations
5. Replace solenoid valve or solenoid valve does not work properly environment;
6. Protection level can reach IP65 can be used in a relatively humid environment.
Specification :
Product size : G (bsp)1/2" DN15
Maximum working pressure : 1.0Mpa
circulation means : water air gas.
rated voltage : AC/DC9-24V / AC220V
Wiring Control Methods : CR-03 / CR04 optional
<;;5S
Product life: 100 000 times
Valve body material : brass
<;;5W
Actuator Material : engineering plastics
Rotation of actuator : 90 degree
Max.Torque output : 6 n. m
Medium temperature: 0-90°C
Manual override : NO
Protection class : IP65
Dimensions
cables
Packing
one pieces a carton
